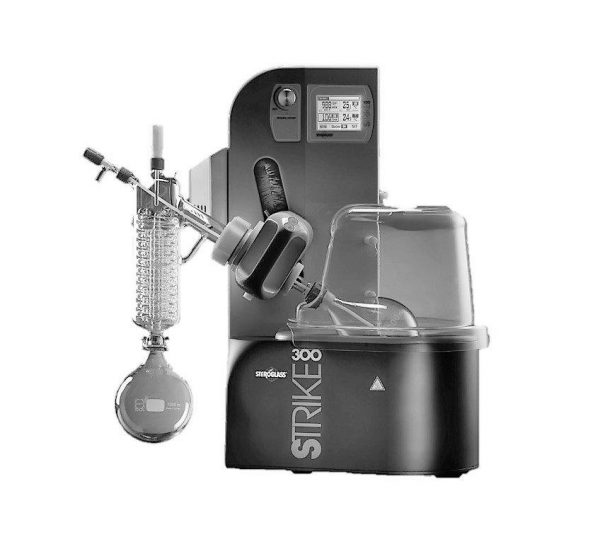

ROTARY EVAPORATOR INNOVATIONS: The following are the technical innovations applied to the construction of the STRIKE 300 Rotary Evaporator making it a fast, working, efficient, safe and maintenance free instrument.
DESIGN: Compact and modern. All controls are placed on the central column to guarantee user-friendly and handly use.

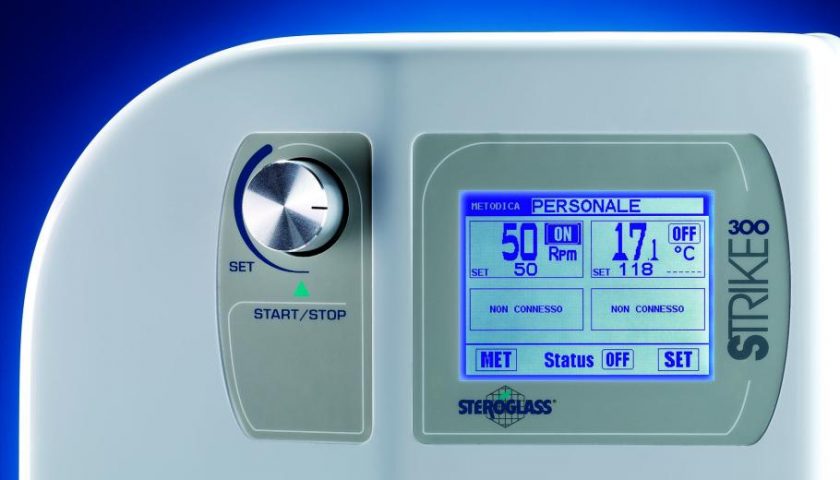

CONTROL PANEL: The touch screen is wide and easy to read. The microprocessor is multi-programmable and GLP compliant.

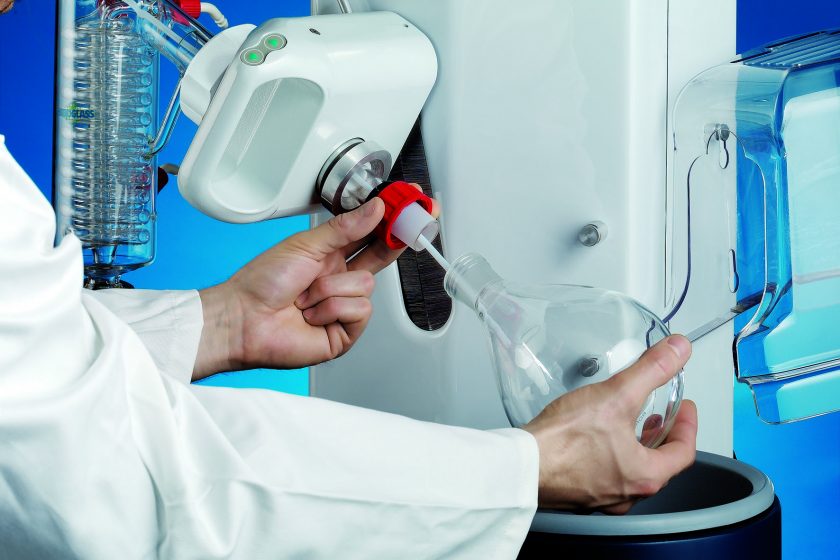

FLASK ASSEMBLY: System used to assemble the evaporation flask. The evaporation flask is screwed onto the steam passing pipe to ensure easy assembly and dismounting operations as well as a perfect seal. (You may also use conventional unthreaded cone flasks and spring-clamps to mount the flasks).

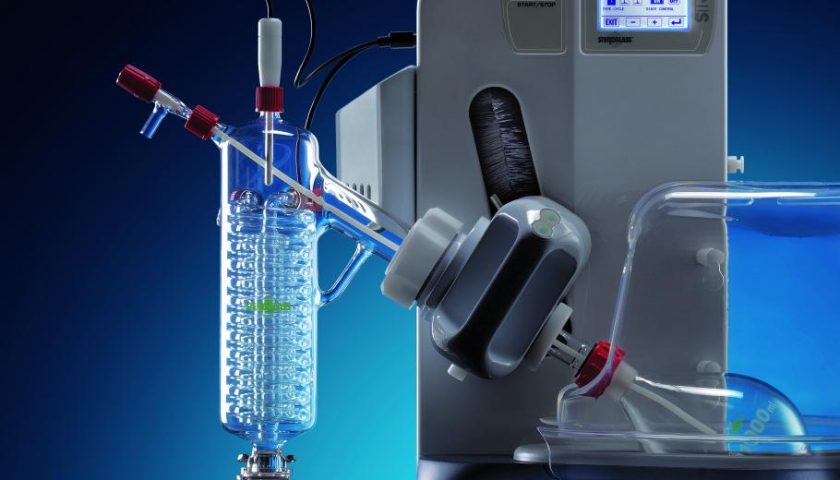

SEALING SYSTEM: The exclusive STEROGLASS sealing system allows a perfect vacuum-tight anti-corrosion seal without gaskets or other materials that can be damaged by solvent contact. This sealing system is a standard feature in all strike models and can be used with all types of glassware.

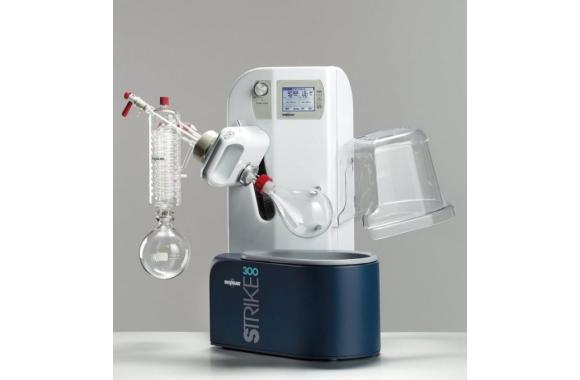

SAFETY SHIELD: The shield is standard for all models. It can be removed by the operator and fitted beside the instrument.
POWERED GLASSWARE LIFTING EQUIPMENT FOR ALL MODELS.
STANDARD FEATURES AND PERFORMANCE:
-Removable safety shield
-Glassware lifting made possible with or without protective shield
-Maintenance-free PTFE and carbon graphite seals
-Powered glassware lifting equipment with safety release (in case of power failure)
-3,5″ monochromatic LCD touch screen
-Quick Start/Stop control and parameter selector
-Rodavis evaporation flask connection system
-Removable thermostatic bath, PTFE coated
-GLP-compliant instrument (with USB interface)
-Optional fume temperature probe
-Optional vacuum controller
-Rotation speed from 20 to 280 rpm (150W induction motor)
-Thermostatic bath ambient temperature: 185°C (2 possible settings: water and oil)
-Bath heater: 1200W
-Bath capacity: 5 liters
-Bath material: PTFE coated
-Removable bath for emptying
-Models available with vertical or slanting, standard or plastic-coated glassware
-Evaporating flasks: 1000ml (optional 50 to 3000ml)
-Collecting flasks 1000ml: (optional 250 to 2000ml)
