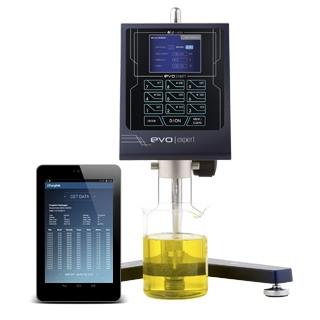

Innovative equipments with an advanced design and multifunctional viscosity measurements.
A user-friendly fungilab APP.
Colour TFT screen for easy readings and fast data recognition.
Intuitive full-touch keypad: data at your fingertips.
New USB connection: Type A 2.0 generation for downloading data to the Pc or Pendrive.
The Bluetooth connection allows the overturned of our experiments to a Tablet.
Selected speed rpm
Selected spindle SP
Viscosity reading cP (mPa·s) or cSt
Percentatge of full scale %
Sample temperature ºC or ºF
Shear Rate (with coaxial spindles) SR (s-1)
Shear Stress (with coaxial spindles) SS (N/m2)
Density (introduced by the user) g/cm3
Dynamic viscosity cP or mPa·s
Kinematics viscosity cSt
Units Converter from SI to CGS
Time to torque: Ending of the test upon reaching a programmed torque
Time to stop: Ending of the test upon reaching a programmed time
Multistep: posibility to programme several essays in a successive way
Ramps: essay programation with an initial and final speed in an specific time
10 working memories
OTHER MAIN FEATURES
AUTO-TEST with visual and resonant alarm
Temperature Reading through PT100 probe
User-enabled viscosity and temperature calibration
6 language options
Datalogger: Posibility to tranfer data to a pendrive into Excel format
Statistics: Posibility to see data in graphics
Download all data through the bluetooth app
AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350
BS: 6075, 5350
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
The equipement is supplied complete with standard spindles
4 spindles for L model
6 spindles for R and H models
Temperature probe PT100
External power supply
Precision: +/- 1% full scale of range
Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP
Temperature probe features: Temperature limits: -40ºC to 300ºC -40ºF to 572ºF Resolution: 0.1ºC / -17.722 ºF Precision: +/- 0.2ºC / +/- 17.666 ºF Type of probe: PT100
Supplied at 110-240VAC, 50/60 Hz.
Software: Fungilab Data Boss The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation
Small Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
Small Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 – 13 ml.) Compatible with Brookfield viscometers
Low Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
Low Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.) Compatible with Brookfield viscometers
Helix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
Temperature control unit up to 300 ºC
